High-Temperature Graphite Gasket for 6" Vacuum Casting Flask - Heat Resistant Seal for Metal Casting, Jewelry Making & Dental Applications - JTS Brand

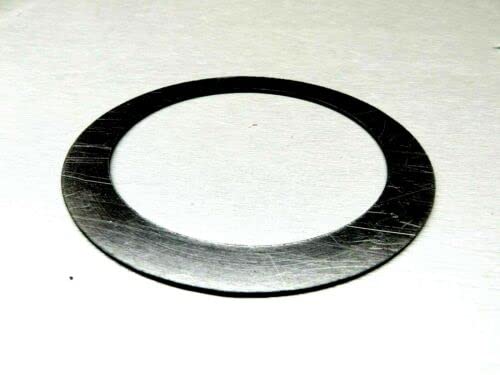

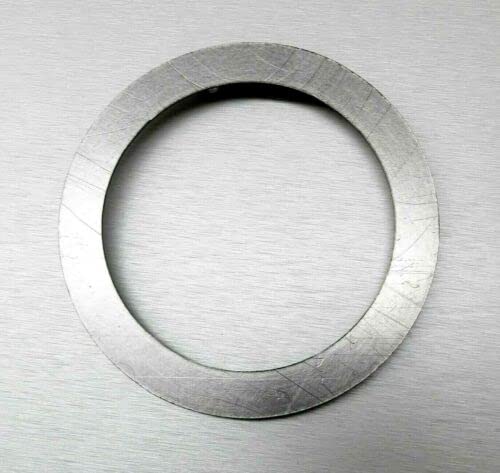

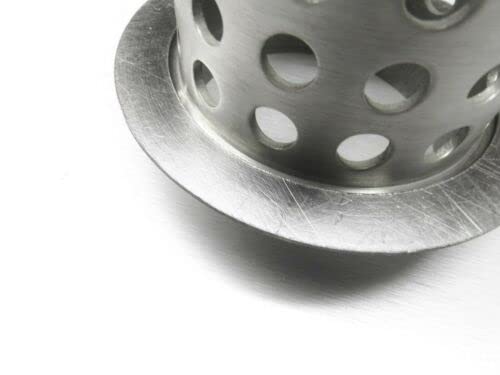

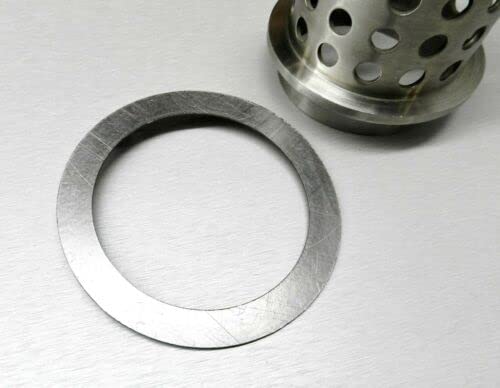

- Graphite Gasket for use in Vacuum Casting for sealing of the flange and the casting chamber. - This graphite gasket is suited for 6" casting flask, is 1/16" thick material will withstand temperatures of up to 1200°F - 649°C. - Gasket are long lasting, can be used even when they wear down to almost paper thin. - Note: The Graphite gasket will last long and can be used as long as they are handled properly… avoiding cracking or breakage, they are subject to breakage. - Graphite gaskets can be used in combination, along with silicone gaskets for optimum vacuum seal and heat protection. The graphite will prolong the life of the silicone gasket. - SPECIFICATIONS: JETS Product # 0304-15260 - Material: High Temperature Graphite - Flask Diameter: 6" - 152.4 mm - Gasket Outside Diameter: 7-/1/2" - 190.5 mm - Gasket Inside Diameter: 6-1/4" - 158.7 mm

Graphite Gasket For Vacuum Casting

Flask Diameter 6" (152.4 mm)

Gasket Outside Diameter 7-/1/2" (190.5 mm)

Gasket Inside Diameter 6-1/4" (158.7 mm)

Material High Temperature Graphite
