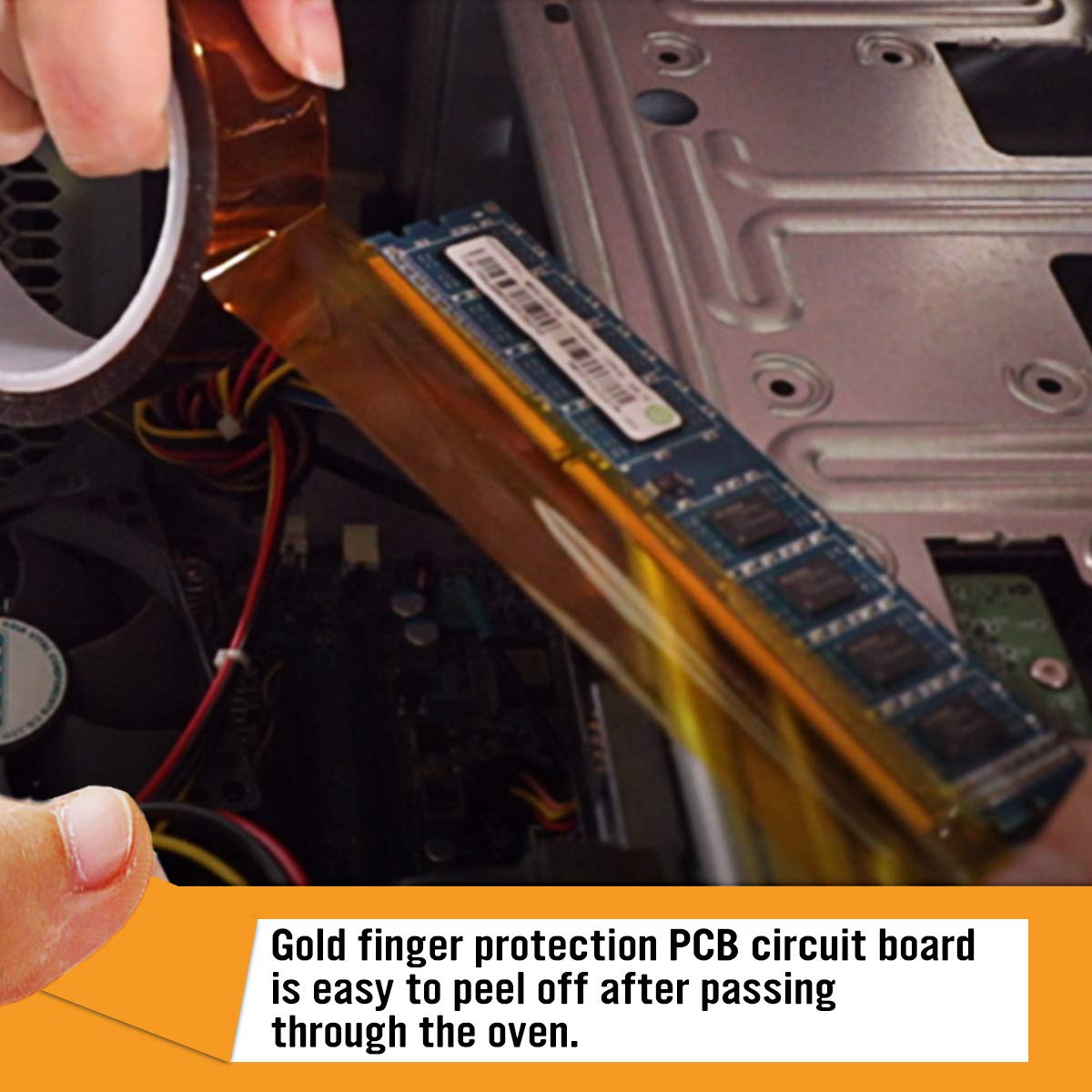

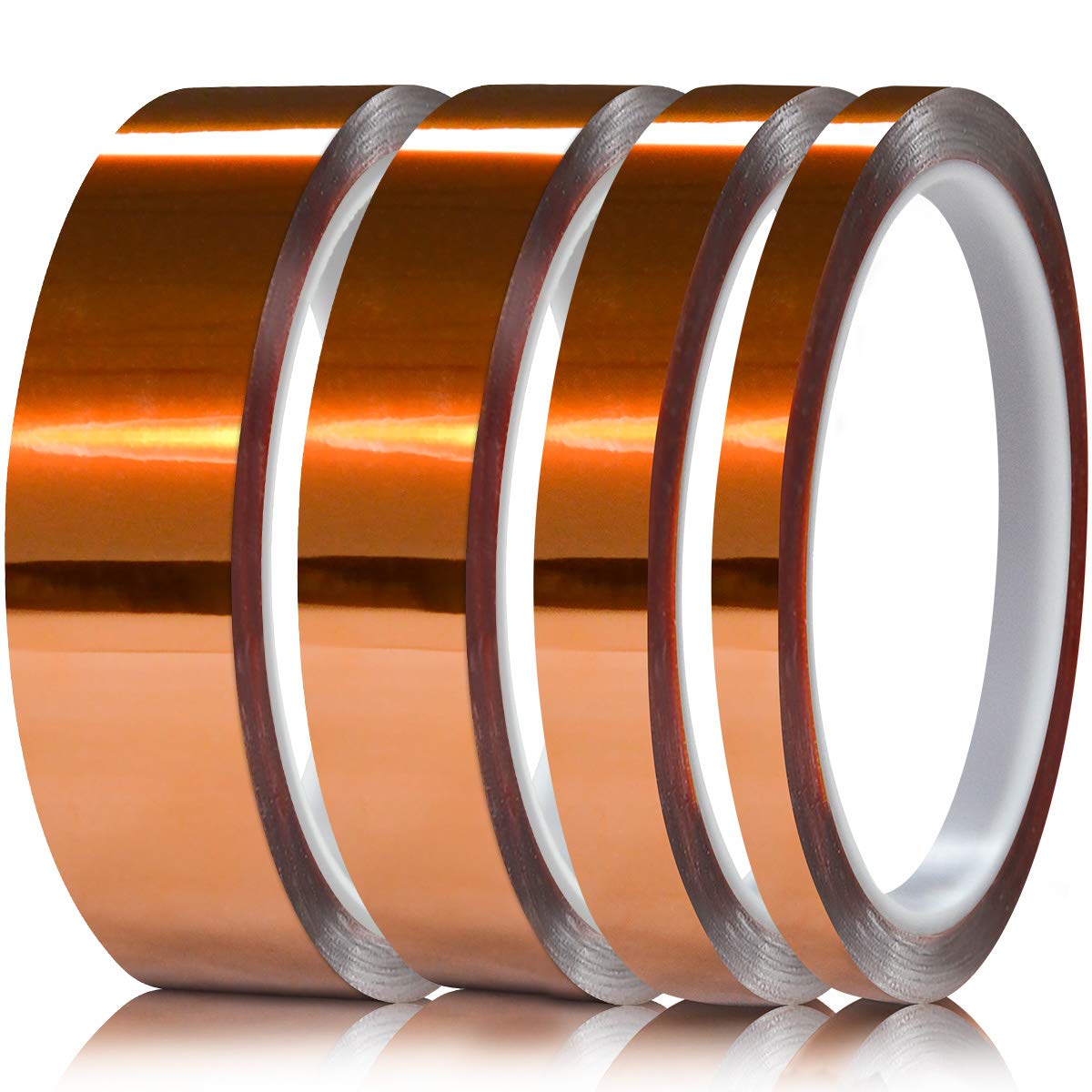

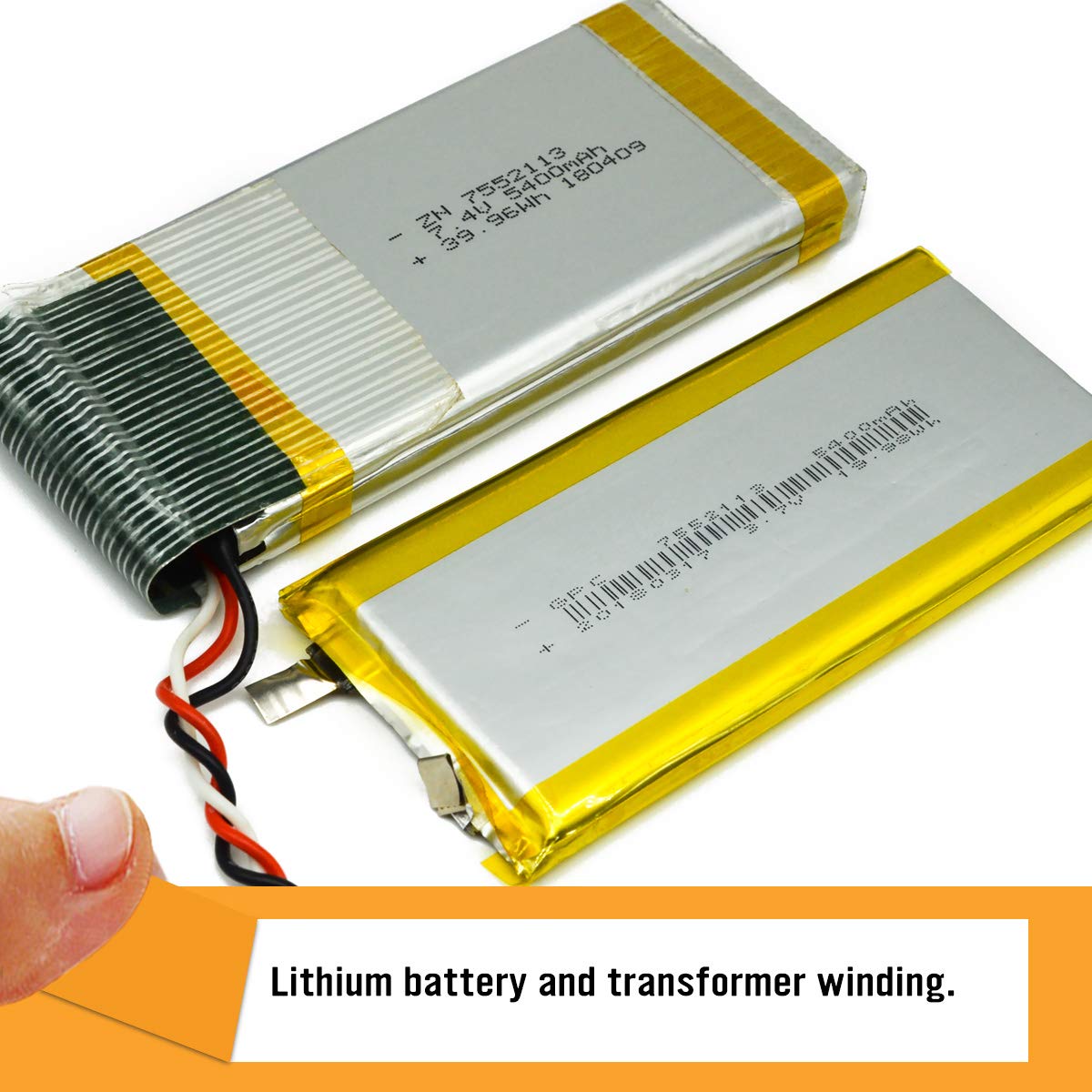

Heat Resistant Tape Polyimide film as the substrate (PI), coated with silicone glue on one side, the overall high temperature resistance can reach 280 degrees, with high and low temperature resistance, acid and alkali resistance, solvent resistance, electrical insulation (level H), radiation protection, etc. Product Introduction Heat Resistant Tape, also known as polyimide tape, uses polyimide film with excellent high temperature resistance and insulation as the base material (PI), coated with high temperature resistant silicone glue on one side, and the overall high temperature resistance can reach 280 degrees ; In the SMT transition peak soldering and reflow soldering process, it protects the PCB multi-finger parts from the corrosion of lead-free solder paste. It has the properties of high and low temperature resistance, acid and alkali resistance, solvent resistance, electrical insulation (H level), and radiation protection. Suitable for electronic circuit board wave soldering tin shielding, protection of golden fingers, high-end electrical insulation, motor insulation, and lithium battery positive and negative and ear fixing, etc. Product Introduction Heat Resistant Tape, also known as polyimide tape, uses polyimide film with excellent high temperature resistance and insulation as the base material (PI), coated with high temperature resistant silicone glue on one side, and the overall high temperature resistance can reach 280 degrees ; In the SMT transition peak soldering and reflow soldering process, it protects the PCB multi-finger parts from the corrosion of lead-free solder paste. It has the properties of high and low temperature resistance, acid and alkali resistance, solvent resistance, electrical insulation (H level), and radiation protection. Suitable for electronic circuit board wave soldering tin shielding, protection of golden fingers, high-end electrical insulation, motor insulation, and lithium battery positive and negative and ear fixing, etc. Product performance Heat resistant tape ,made from polyimide film with high temperature resistant silicone adhesiveThe highest temperature up to 662 ℉（350℃), Long-term temperature: 536 ℉（280℃）& Short-term temperature: 662 ℉（350℃）Excellent heat & solvent resistance Minimal shrinkage after baking and clean removalUsed on insulating circuit boards, etching, automotive sensor and manifolds,fiber optics cable, high temperature powder coating and semiconductor manufacturing. Product parameter Color Tawny Material Polyimide film Adhesion type Silicone Thickness 2.4 mil(0.06mm),1 mil polyimide film, 1.4 mil adhesive. Adhesive power(N/25mm) 7.5 Tensile strength(N/25mm) 115 Elongation 55% Breakdown Voltage 4.5kv Heat resistance -10℉ to 662℉. Long-term temperature: 536 ℉(280℃) & Short-term temperature: 662 ℉(350℃) Applications Harness fixed Use it to replace the factory adhesive in LCD panels and notebook computers to fix the wiring harness. Thermal transfer fixation It is very suitable for hot pressing T-shirt transfer, but the effect is very good. It is easy to apply, sticks well to transfer paper and T-shirt materials, fixes the transfer in place, and most importantly, can be cleanly pressed and removed without residue, making it very suitable for such applications. Circuit board protection Thermal tape is ideal for protecting sensitive flexible printed circuit board (FPC) components during wave soldering. High temperature paint protection Protect all the important parts of the product in the high-temperature paint booth intact, and easily remove the Kapton tape after cooling, without leaving any glue.
