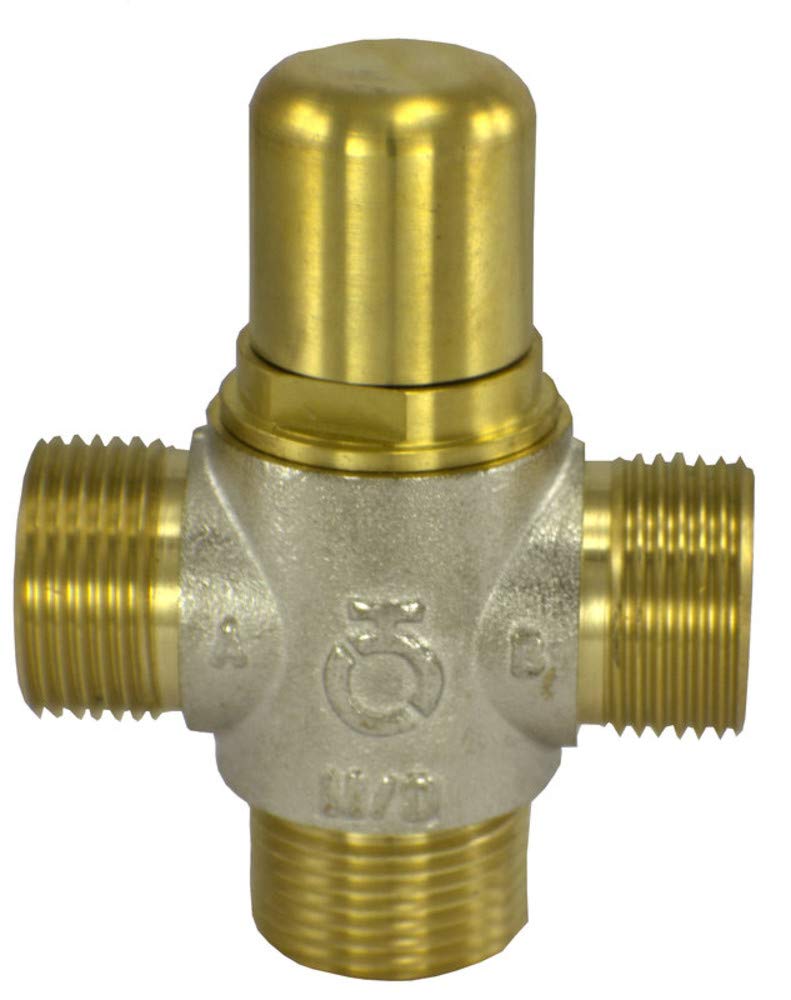

Divert075 NPS Brass Thermostatic Diverting Valve for Solar Water Heater Systems with Heat Dump - 3/4" NPS - Perfect for Solar Thermal, Hydronic Heating & Radiant Floor Applications

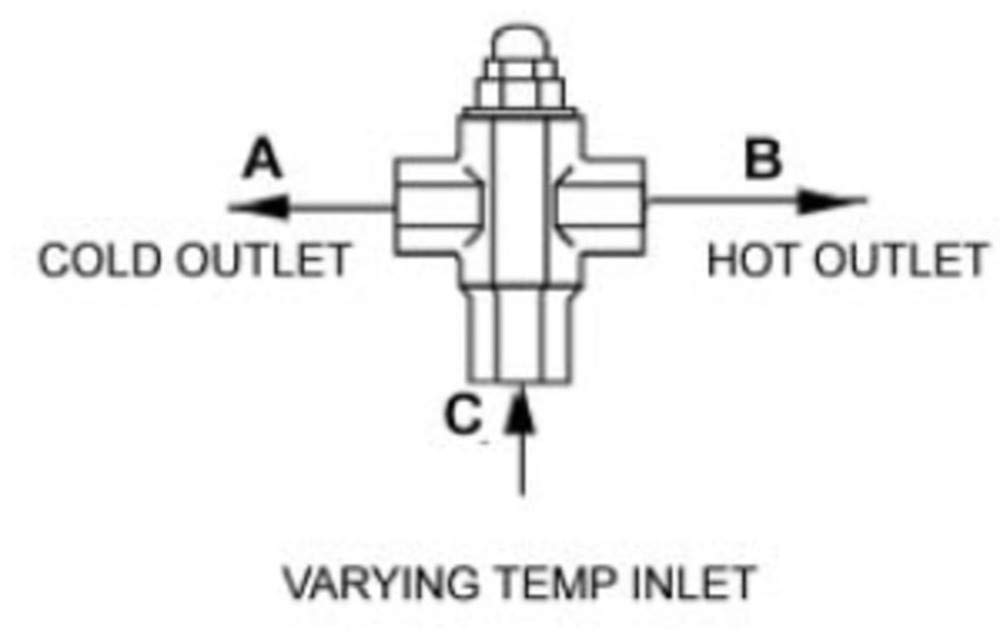

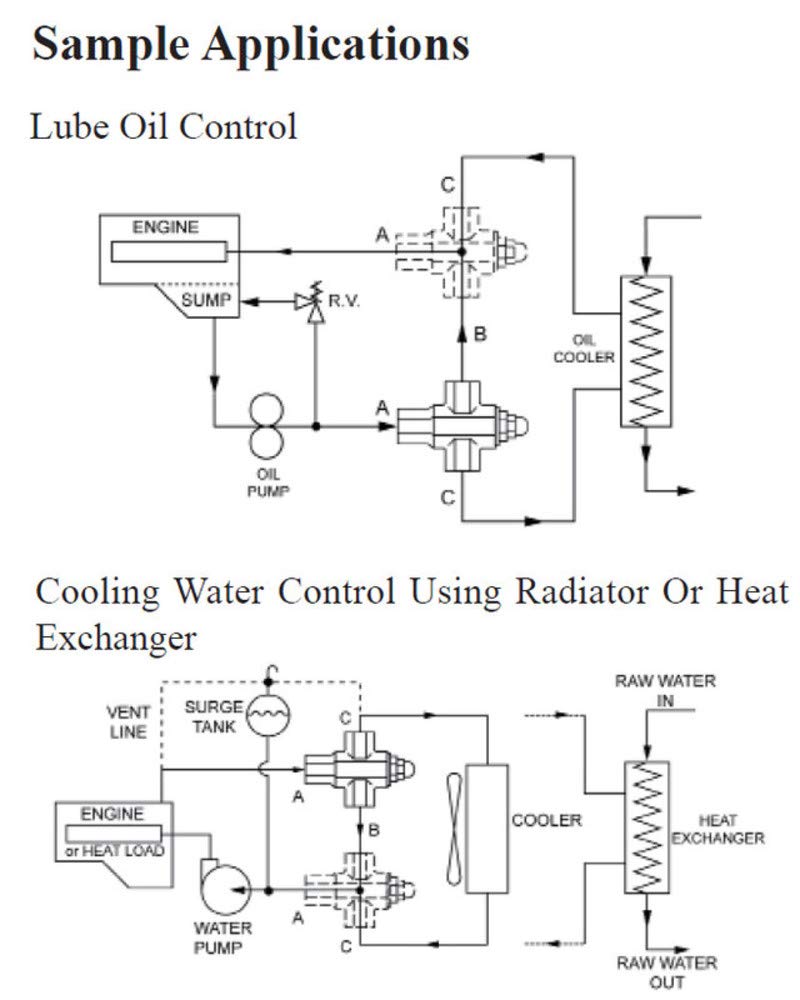

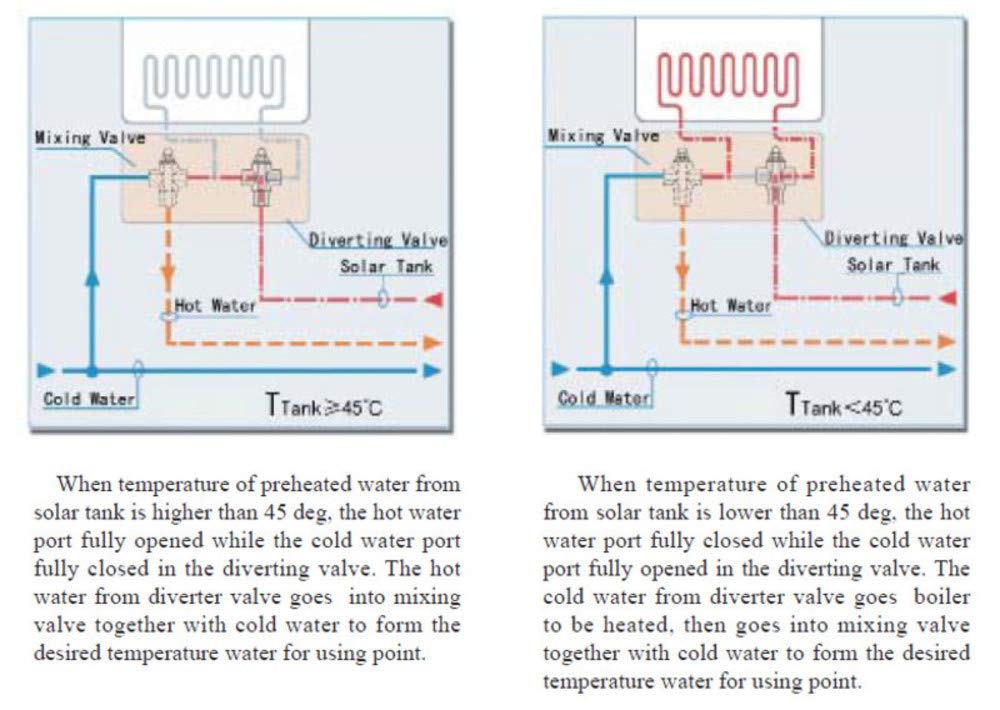

Thermostatic diverting valves passive automation of solar water heat dumps by duda energy thermostatic diverting valves are used hot fluid systems where the fluid may need to be diverted to a different loop when it reaches a certain temperature. Some examples of common applications which may use this valve are: these diverting valves are set to 95 degree. Once the temperature of the working fluid reaches this temperature, the valve will divert fluid flow from the standard output to the alternative output. In the case of a solar water heating system, this secondary loop should go to the radiator and then rejoin the original loop through a tee, preferably prior to entering the tank. This enables a passive heat dump to occur (no use of electronic valves). rather than using the controller to halt heating of the solar tank or to divert the fluid electrically, the fluid will automatically dissipate excess heat to the ambient temperature when redirected by this valve in conjunction with a heat dump (radiator), thus Saving electrical costs and maintaining continuous operation of the system with no shut-down required so that the system can resume heating later when heat is needed. The threads on the thermostatic diverting valves are parallel threads, making them very convenient for use with duda's Flex tubing. Note: this valve is not adjustable. There is a cover on the top of the valve. When removed, there is a screw which can be turned. This is for factory calibration only. Do not turn this screw or the valve will Leak and the warranty will be voided

Diverting temperature 95 degree c, accuracy 2 degree c

Max pressure 1.0 mpa (145 psi), cv 1.2, body material brass

Use for diverting hot fluid in a solar water heater system to a heat dissipation

Passive solar fluid directing
