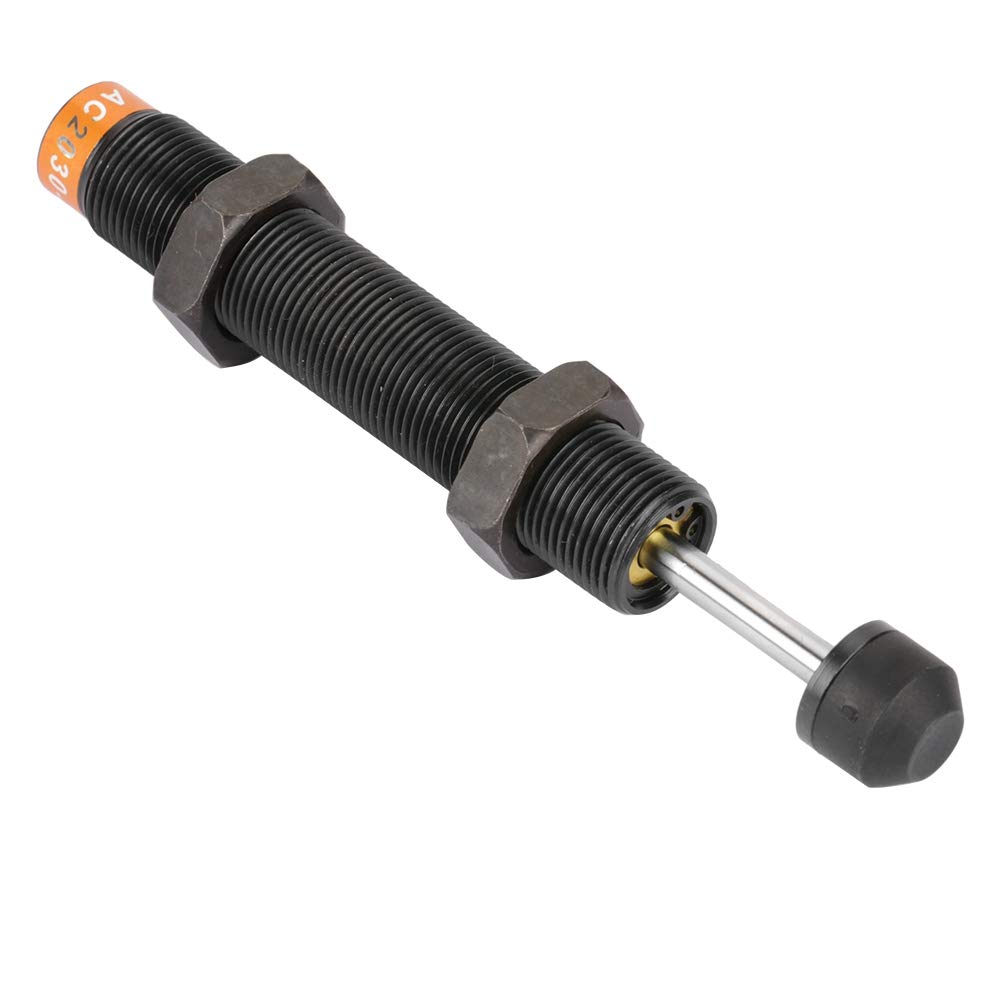

High-Efficiency Alloy + Stainless Steel Pneumatic Cylinder AC2030-2 - Heat Resistant for Industrial Automation & Machinery Applications

Features: It has a softer shock absorption effect, which is more conducive to prolonging the life of the machine. It can reduce shock and noise in automated mechanical operations, enhance working efficiency. Shell is made of high quality material, good damping, high hardness and strong heat resistance. Greatly reduce the shock and improve the stability. The spring inside can reset the piston rod fast cause the perfect movement of the check valve. Specifications:Material: Alloy + Stainless steelColor: BlackStroke: 30mmMax absorbed energy: 50NmEnergy absorb: 48000Nm/hEffective weight: 40-800WE(KG)Allowable speed: 1.0-3.5m/sWorking temperature: -10~80℃Thread: M20Length: Approx. 157mm / 6.18inchWeight: Approx. 255gPackage Included:1 x Oil Pressure Shock AbsorberNote: Please aim the impactor at the center of the shaft. Do not remove the front cap to use, because remove the cap will lengthen the piston rod and make it hit to the bottom, this may break the bottom. It is strictly prohibited to spray paint on the tube teeth and shaft hub, otherwise it will affect the heat dissipation effect and leak oil. Do not make the piston rod rust and other foreign matter. If there are two or more vibration absorbers are installed on the same side, Please confirm the synchronization. For safety, do not break it up to use.

It has a softer shock absorption effect, which is more conducive to prolonging the life of the machine.

Shell is made of high quality material, good damping, high hardness and strong heat resistance.

It can reduce shock and noise in automated mechanical operations, enhance working efficiency.

Greatly reduce the shock and improve the stability.

The spring inside can reset the piston rod fast cause the perfect movement of the check valve.
