59490019

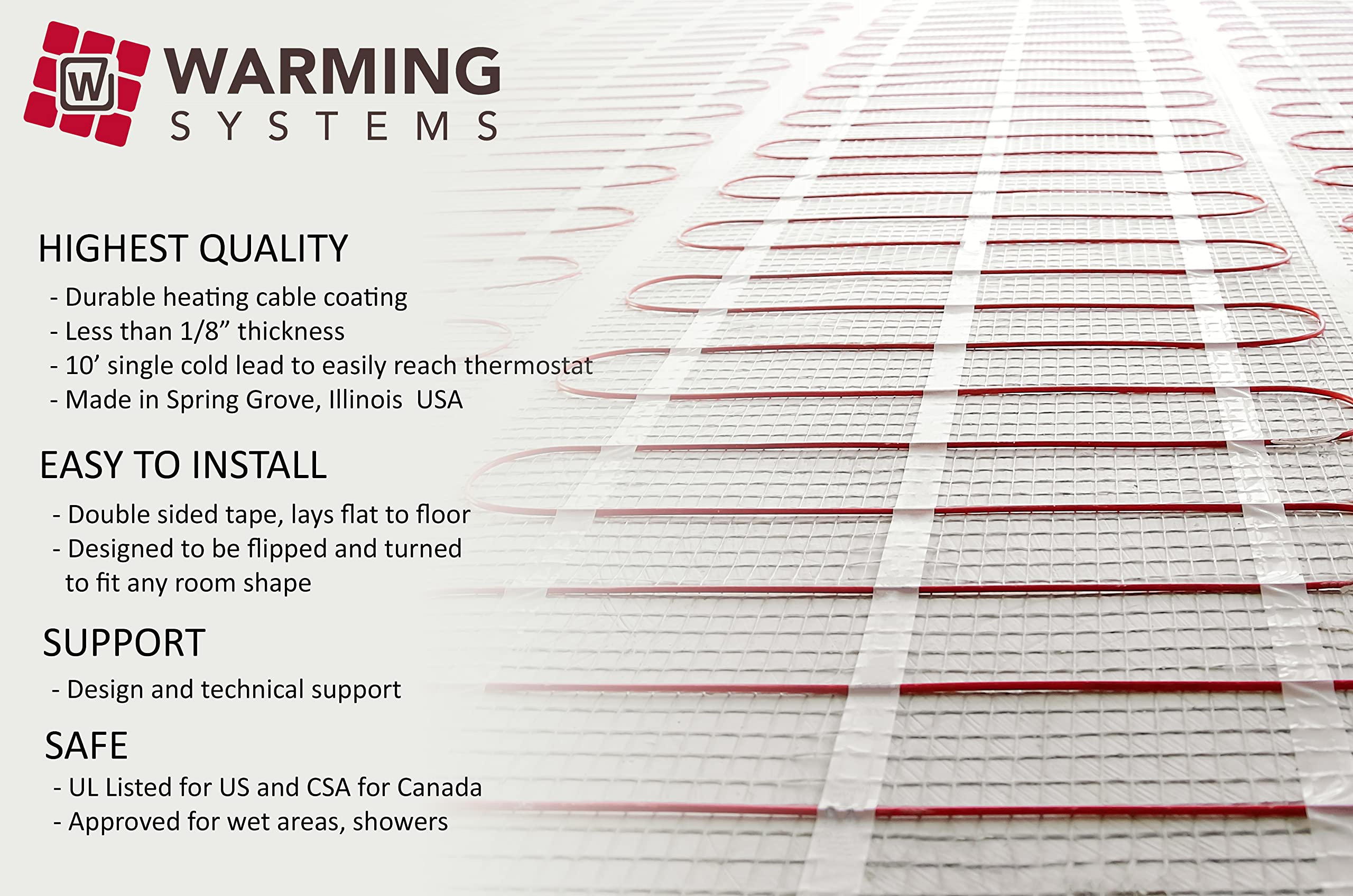

MAT with Touch Screen CABLE with WiFi Thermostat Cable Membrane Kit 240 Volt CABLE Kit Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — 4.6 out of 5 stars 4 4.7 out of 5 stars 6 4.8 out of 5 stars 8 Price $255.00$255.00 $289.00$289.00 $270.00$270.00 $249.00$249.00 Voltage 120 Volt 120 Volt 120 Volt 240 Volt Sizes Available Up to 150 Sq Ft Up to 150 Sq Ft Up to 150 Sq Ft Up to 300 Sq Ft EVERYTHING YOU NEED IS INCLUDED: WARMING SYSTEMS HEATING MAT 20" WIDE ELECTRIC FLOOR HEATING MAT The Electric Floor Heating Mat consists of a mat with the cable heating elements pre-spaced 3" within the mat. Simply unroll the floor heating mat with the cold lead running up the wall to the electrical box. These heating systems are ideal for rectangular or square areas with right angles. You can manipulate the mat to fit the desired heating area by using the turning techniques shown below. The white fiberglass mesh may be cut to flip and turn the mat. The RED HEATING ELEMENT CAN NOT BE CUT, so be sure to accurately measure the space you are heating. DIGITAL PROGRAMMABLE THERMOSTAT Digital Thermostat Model # TH115-AF-120S This programmable floor sensing thermostat with floor sensor is designed to work with electric floor heating systems. It gives you the ability to accurately control the floor temperature for maximum comfort and energy savings. The thermostat features high-tech precision with straight forward, user friendly interface and contemporary design with backlit display. This floor sensing thermostat is DIGITAL, PROGRAMMABLE, and includes the FLOOR SENSOR. USER FRIENDLY-Easy to operate. This thermostat is 120 volts, rated for 16 amps, easily switching between F and C temperature scales. This thermostat is not GFCI protected. Fits into a standard 2" x 4" square electrical box. THERMOSTAT FEATURES AF mode-controls ambient temperature with floor temperature limitationF mode controls the floor temperature using an external temperature sensorTwo temperature sensors-one in floor, one in thermostat for accuracy and security INSTALLATION MONITOR The Installation Monitor measures continuity of the heating system during installation and will alarm if the heating system gets damaged. It will give you peace of mind while installing the floor warming system. Connect the system leads to the monitor prior to installation. The monitor will "scream" a warning in the event the heating element is cut or damaged allowing you to make any necessary repairs before the heating system is embedded in mortar. If the alarm sounds, stop work and consult the operation manual. We still recommend checking the ohms of the floor heating system with a multimeter before, during, and after installation. Red light and alarm indicates lead wires have come loose from the terminals or damage has occurred to the heating systemA white light indicates the monitor is operatingCan monitor up to 3 systems at one time when they are temporarily connected in series 2 - FLOOR SENSORS 2 - floor sensor are included. It is common to install a backup sensor. If one fails, it is simple to switch to the other sensor. The sensor wire runs down the wall and into the heated area to give an accurate floor temperature reading. The sensor probe is installed in between the heating elements. The thermostat also has a built in "Ambient" temperature sensor that allows for dual temperature control. REASONS TO PURCHASE FROM WARMING SYSTEMS INC. SAFE UL LISTED for USA and Canada and rated for Wet Locations (showers)SAVE MONEY Less operating time required to maintain a comfortable room temperature than furnaces and other methods of heating keeping operational costs to a minimum.EFFICIENT An average bathroom uses about the same amount of energy as two 100-watt light bulbs. Used in conjunction with a programmable floor-sensing thermostat will make the system even more efficient.EFFECTIVE Warmth is carried to living spaces on invisible waves of radiant energy from the ground up leaving no hot air to rise and be wasted at ceilings. You can turn your "regular" thermostat down 3 - 5 degrees and feel just as warm.CLEAN No air passes through dusty ducts or dirty fins before reaching the room.SILENT The quietest way to deliver heat to your home or business.SIMPLE Single cold lead allows for easy installation.PATRIOTISM Made in the USA Installation: Carefully calculate the square footage of the area to be heated. Do not include permanent objects or areas that are not walked on. Purchase the corresponding heating system size.Simply unroll the floor heating mat with the cold lead running up the wall to the electrical box. The adhesive tape on either side of the mat allows the mat to stay in place and lay flat. You can manipulate the mat to fit the desired heating area by using the turning techniques shown below.Install the mortar and flooring over the top of the heating system.Connect the floor heating thermostat. Mat Turns and Fill-in Techniques Techniques used to layout around corners, angles, and built-ins. BACK TO BACK TURN - Flip and turn mat to roll mat along side of first mat.FLIP TURN - Allows mat to make a 90 degree turn.ROLL-OVER TURN - Allows to offset mat and continue straightFILL-IN TECHNIQUE - Remove wire from mesh and layout in any shape. Mat Turns and Fill-in Techniques Techniques used to layout around corners, angles, and built-ins. BACK TO BACK TURN - Flip and turn mat to roll mat along side 1st mat.FLIP TURN - Allows mat to make a 90 Degree turn.ROLL-OVER TURN - Allows to offset mat and continue straightFILL-IN TECHNIQUE - Remove wire from mesh and layout in any shape. Mat Turns and Fill-in Techniques Techniques used to layout around corners, angles, and built-ins. BACK TO BACK TURN - Flip and turn mat to roll mat along side 1st mat.FLIP TURN - Allows mat to make a 90 Degree turn.ROLL-OVER TURN - Allows to offset mat and continue straightFILL-IN TECHNIQUE - Remove wire from mesh and layout in any shape. Mat Turns and Fill-in Techniques Techniques used to layout around corners, angles, and built-ins. BACK TO BACK TURN - Flip and turn mat to roll mat along side 1st mat.FLIP TURN - Allows mat to make a 90 Degree turn.ROLL-OVER TURN - Allows to offset mat and continue straightFILL-IN TECHNIQUE - Remove wire from mesh and layout in any shape. Back-to-Back Turn Flip Turn Roll-over Turn Fill-in Technique Luxury in all Rooms Bathroom - Warm feet when stepping out of the shower or sitting on the toilet. Kitchen - Warm feet make it more enjoyable when cooking or eating. Bedrooms - Warm feet when stepping out of bed will start your day off right. Sunrooms - Warm floors make sunrooms usable for more months of the year. Add Luxury to Your Home Warming Systems electric radiant floor heat needs to be felt to appreciate the luxurious feeling it offers. Imagine stepping onto a warm comfortable bathroom floor in the morning rather than an unpleasant chilly tile floor. As soon as you step on a floor with electric floor heat you will immediately feel the warmth. Since radiant heat rises from the electric floor heating system, it warms the objects in the room making the entire room comfortably warm for you and your family to enjoy. Comfort - The most popular reason to add radiant heat is for comfort. Safety - All of our products are UL tested for safety, including for use in showers. Efficient - Electric floor heat has higher levels of energy efficiency than forced air because it heats the people and objects in the room. Easy to Use - With the programmable floor sensing thermostat, it can easily be programmed to turn on and off when you desire.

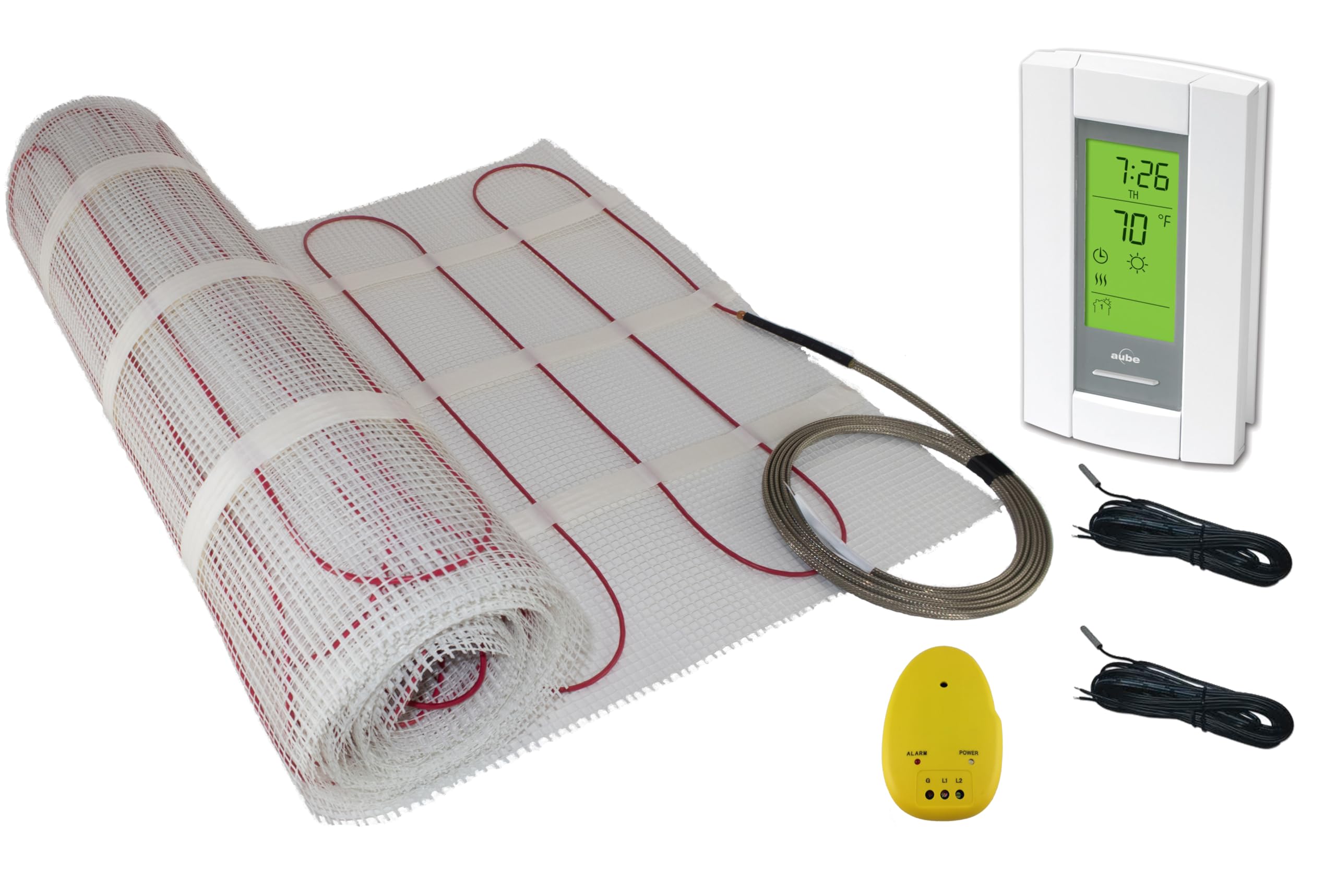

70 Square Foot Under Tile Heating Mat, Mat is 20” Wide x 42’ Long, 120 Volts

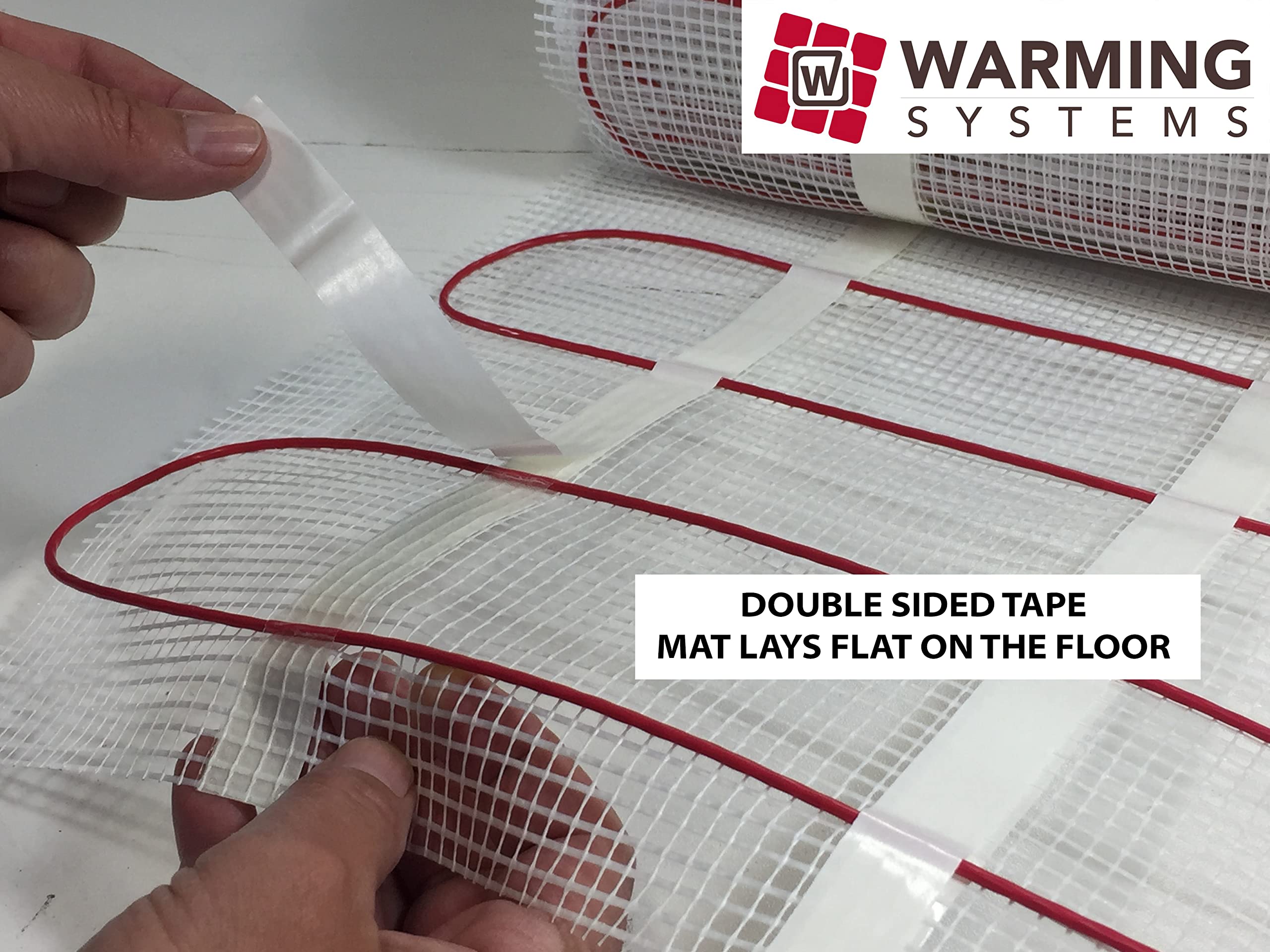

Mat has double sided tape (Adhesive Backing) to stick to floor. Lays FLAT for easy installation.
120V, 7 Amp, 840W, 12 Watts/Sqft, UL Listed for USA and Canada, Cable is 1/8” thick

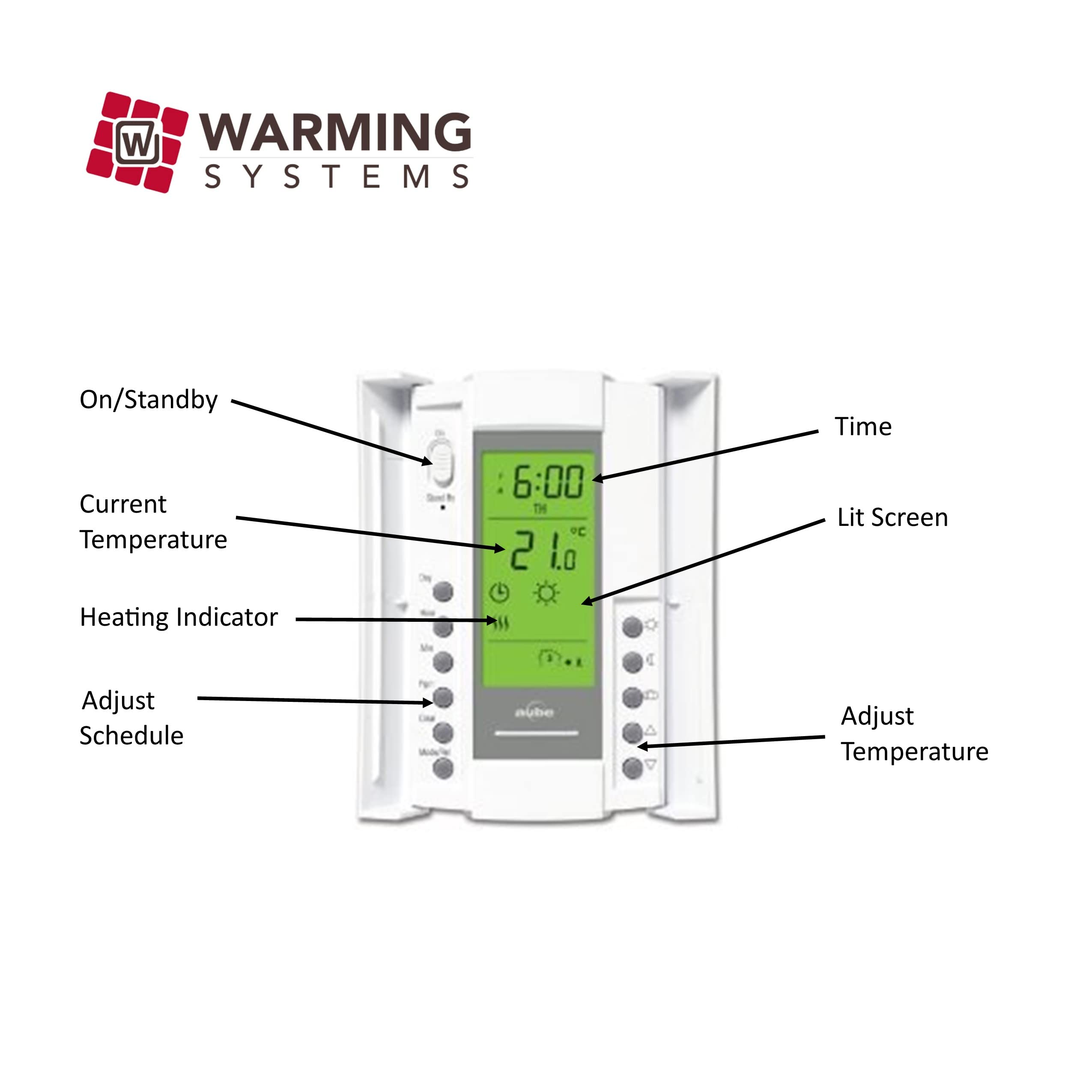

Digital Programmable Thermostat # TH115-AF-120, Includes floor sensor
Made in the USA using the highest quality materials, Single Cold Lead, 25 Year Warranty
I purchased two of these warming mats about a year ago and installed them in January of 2012. It is recommended that a curing period of 1 month be observed for the thin set to dry completely so I did not get to use them much last year as we had a warm spring. As mentioned I bought two mats and did two bathrooms. I felt like I was taking a bit of a risk with no reviews on this product and limited information but they were cheaper than I could find the mat and thermostat anywhere else. The math may have changed by now but these were a bargain and I see the price remains the same now (nov-2012) as when I purchased them. I did do a lot of research before going this route and came to the conclusion that the real value in these kits is in the controller and in this case this is an absolutely great controller/thermostat. It is easy enough to set up and offers all the programmable options I wanted. Aube is a high quality brand even if they are not as well known in the mainstream as some others. I went with the mats because they worked well for my bathrooms but depending on design I would not hesitate to use the cable. The mat was well made and relatively easy to install. This was my 5-6 tile job and it does add a little difficulty to the job but nothing an experienced DIY'er can't handle. The biggest concern is getting the tile with the mat under it to sit at the same height as the tile without mat under it. I used thin set to set mine on top of backer board and just was conscious to use more thin set (different trowel) on the tiles without mat under it and it turned out fine. The other option is to use self leveling compound but that would have added more height to the floor and I wanted perfect transitions to the surrounding floors. I am capable of doing the electrical and did so but if you are not familiar with household wiring, GFCI's etc I would recommend this part be farmed out to someone who can. Just follow the directions locate the temperature sensor correctly and be careful of the wire as you work and you should be fine.This year I have been using them more and more as we get into the winter months and boy do I love these. They start giving noticeable heat to your feet in 15-30 minutes but should be left on for about an hour to get the full effect. I do not try to use them to warm the room so can't comment on that. With the controller it makes it easy to have the floor all warmed up for a morning shower without having to do a thing.To summarize:Great product, relatively simple install, awesome controller, mat works well to aid install, and the end result is simply fantastic. My bathrooms were always a little cool and getting out of the shower onto a warm floor while I shave or whatever is just great. There are a lot of options when it comes to a floor warming system but for my money I think Warming systems Inc had the best value I could find and a great product.I will be doing 4-5 more bathrooms this winter for family/friends and will be using this product again where a warm floor is wanted.
