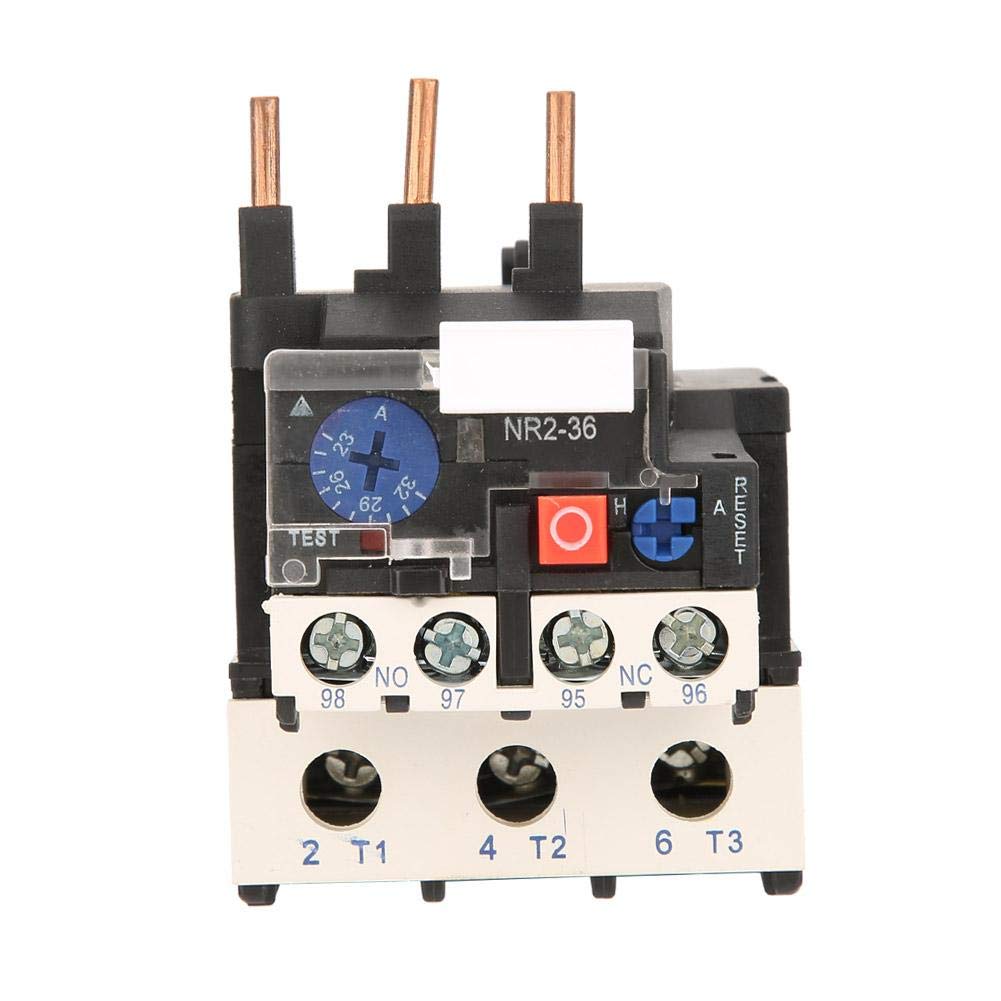

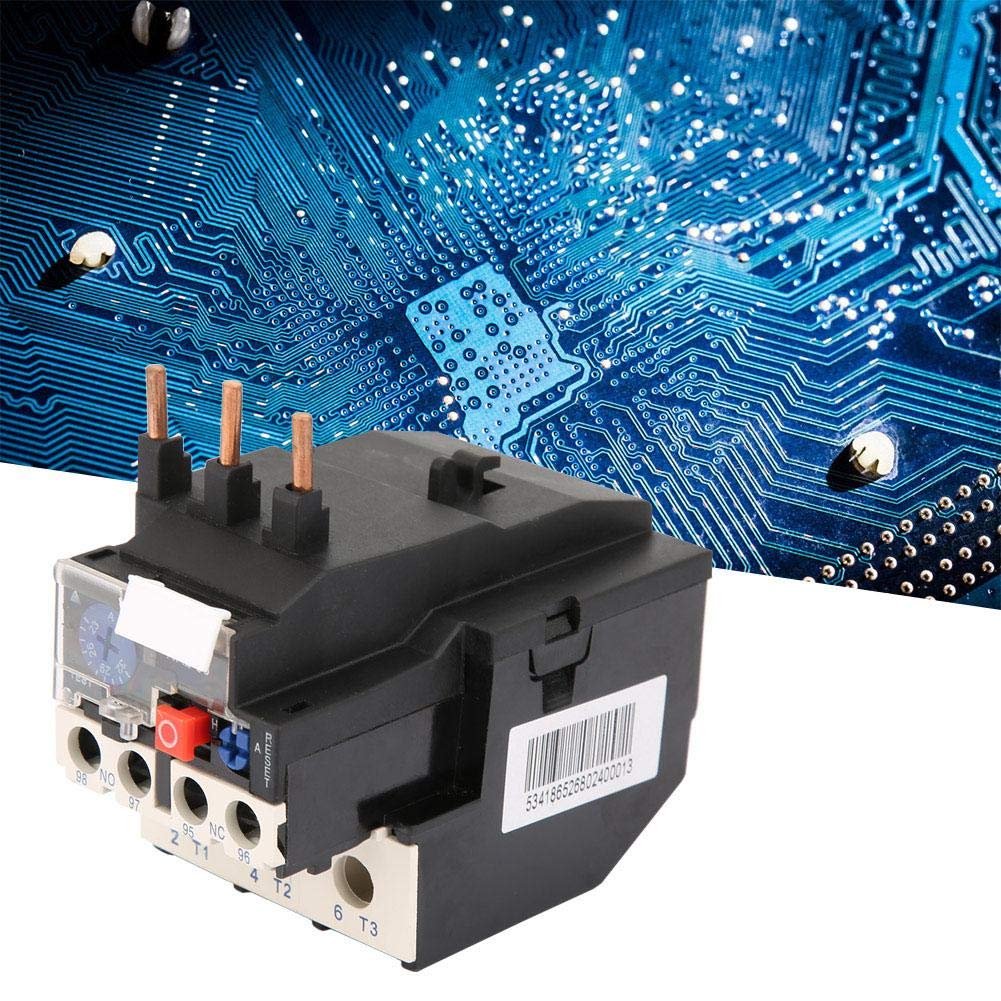

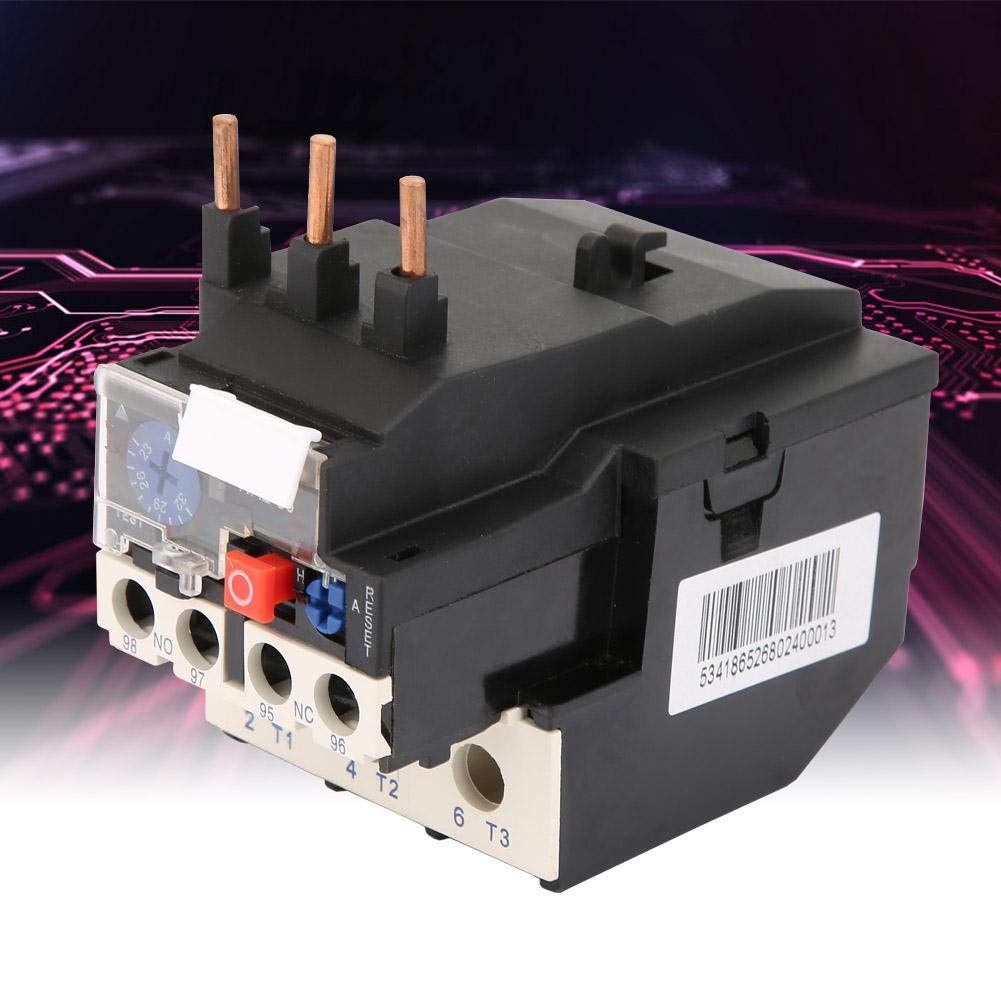

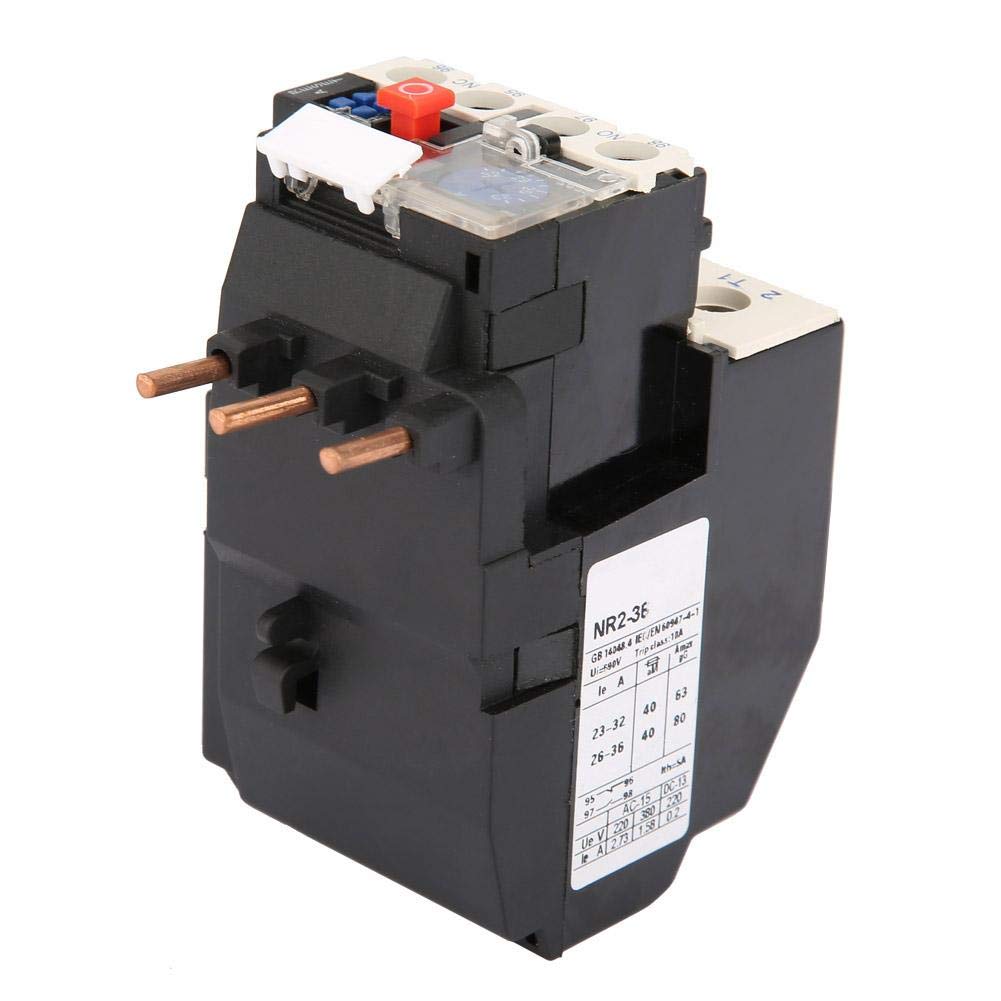

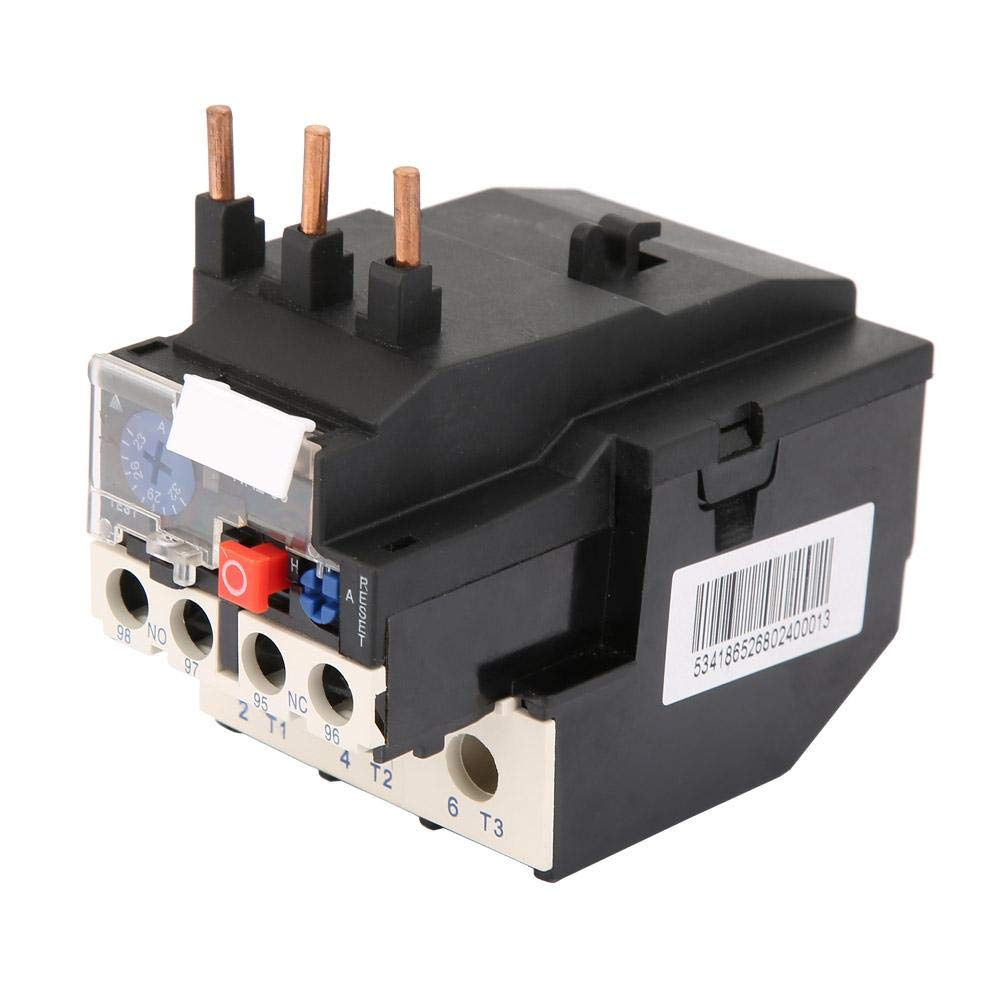

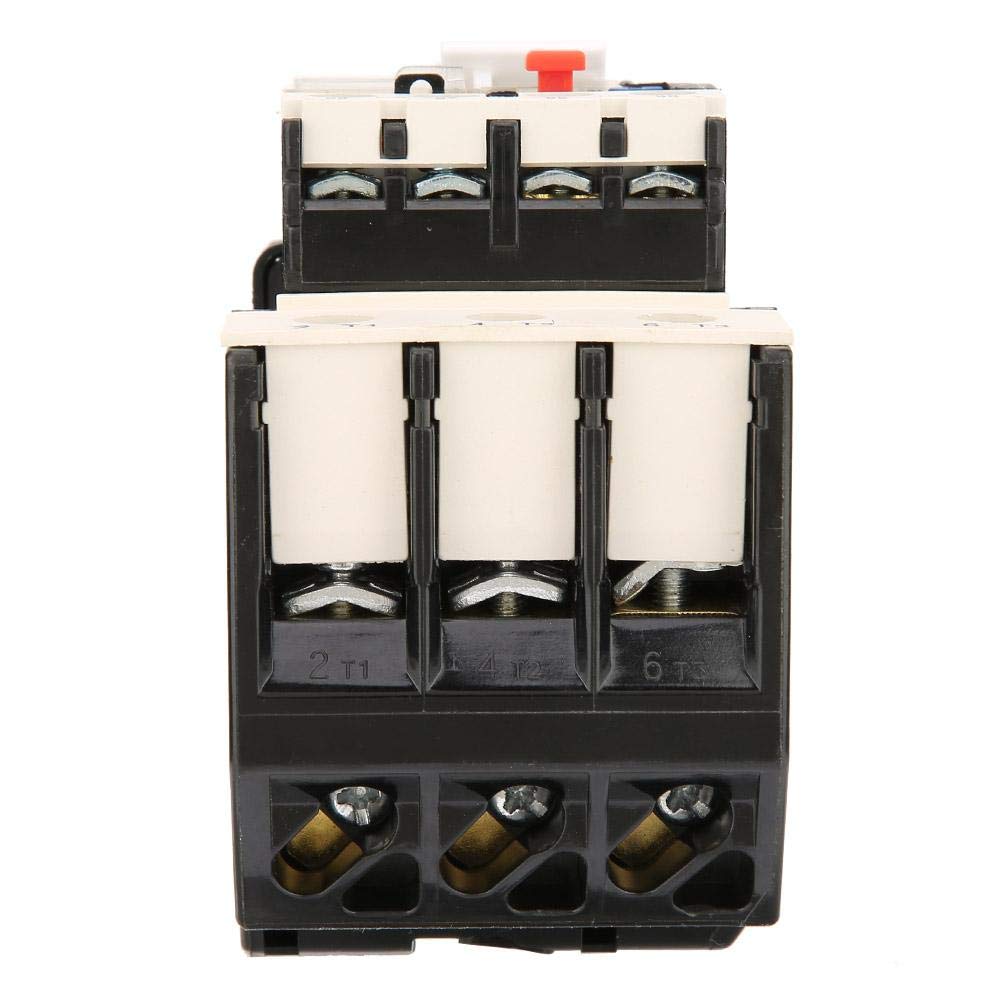

23-32A Thermal Overload Relay - Electric Heat Protection Relay for Motor Safety - Industrial Grade Overload Protector for Pumps, Compressors & HVAC Systems

Features: Made of quality material, long service time. This thermal relay can be used in the circuit of 50-60hz, rated insulation voltage 690V. Used for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation With phase break , manual and automatic reset, temperature compensation, trip indication, test button, stop button Specification: Power frequency: 50-60hz Rated current: 23-32A Rated insulation voltage: 690v Phase break : yes Manual and automatic reset: yes Temperature compensation: available Tripping instructions: yes Test button: yes Stop button: yes Installation: plug-in Auxiliary contacts: 1NO+1NC AC 15 220V rated current A 2.73 AC 15 380V rated current A 1.58 DC-13 220V rated current A 0.2 sectional area: main loop4-10, auxiliary loop 0.5-2.5 Tripping level:10A specification:40aM 80gG Package Weight: Approx.238g/8.4oz Package list: 1 * Thermal Overload Relay

Made of quality material, long service time.

This thermal relay can be used in the circuit of 50-60hz, rated insulation voltage 690V.

Used for protecting the phase break when the electric motor is overload.

The relay has different mechanism and temperature compensation

With phase break , manual and automatic reset, temperature compensation, trip indication, test button, stop button
