Xunn Electric Bike Conversion Kit - 500W Motor with LCD3 Display, Reliable Performance, Heat Dissipation & Circuit Protection | Perfect for Commuting, Off-Road & Urban Cycling

Specification:Item Type: 2A Controller LCD3 Display 1 to 2 Connecting Line KitMaterial: Aluminum Alloy + ABS PlasticColor: As Pictures ShownWeight: Approx. 801g / 28.3ozProduct Size: Controller Box: Approx. 125x65x40mm / 4.9x2.6x1.6inDisplay: Approx. 95x65mm / 3.7x2.6inController Rated Voltage: DC 36V/48VController Rated Current: 11AController Maximum Current: 22±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VApplicable Brushless Motor Power: 500WConnector Type: Full Waterproof Connector1 To 2 Line Description: One end is connected to the controller, the other end is connected to the display and thumb throttleController Line Definition:1. Red, black single wire: power wire2. Black single large wire (9pin): motor wire3. Black single wire (9pin): 1 To 2 wires4. Black single wire (3pin): power assist sensor wireLCD3 Display Instrument Function Description: Up button, switch button, down button, battery capacity indication, backlight and headlights, brake display, one way time, total travel time, battery display, motor Celsius temperature, motor Fahrenheit temperature, ambient Celsius temperature, ambient Fahrenheit, 6km/h thrust assist, cycling speed (metric), cycling speed (imperial), speed, average speed, distance (metric), distance (imperial), cycling distance, total distance, battery voltage, power assist sensor sign, functionHow to Use:Controller Description: The wire color definition interface on the controller can be connected to the socket of the accessory to realize the function. For the specific operation, please refer to the wiring diagram and manual.Package List:1 x Controller1 x LCD Display1 x Display Mounting Bracket4 x Display Mounting Bracket Gasket2 x Display Mounting Bracket Screws1 x Display Manual1 x

Controller Housing: The controller housing is made of high quality aluminum alloy material with a grooved design, which the internal circuits from thermal overload due to good heat dissipation.

Multi Function Display: The LCD3 display has a variety of functions that make it easier to see the data on the panel while cycling, such as battery display, backlight display, headlight display, brake display, ambient temperature, motor temperature, one w

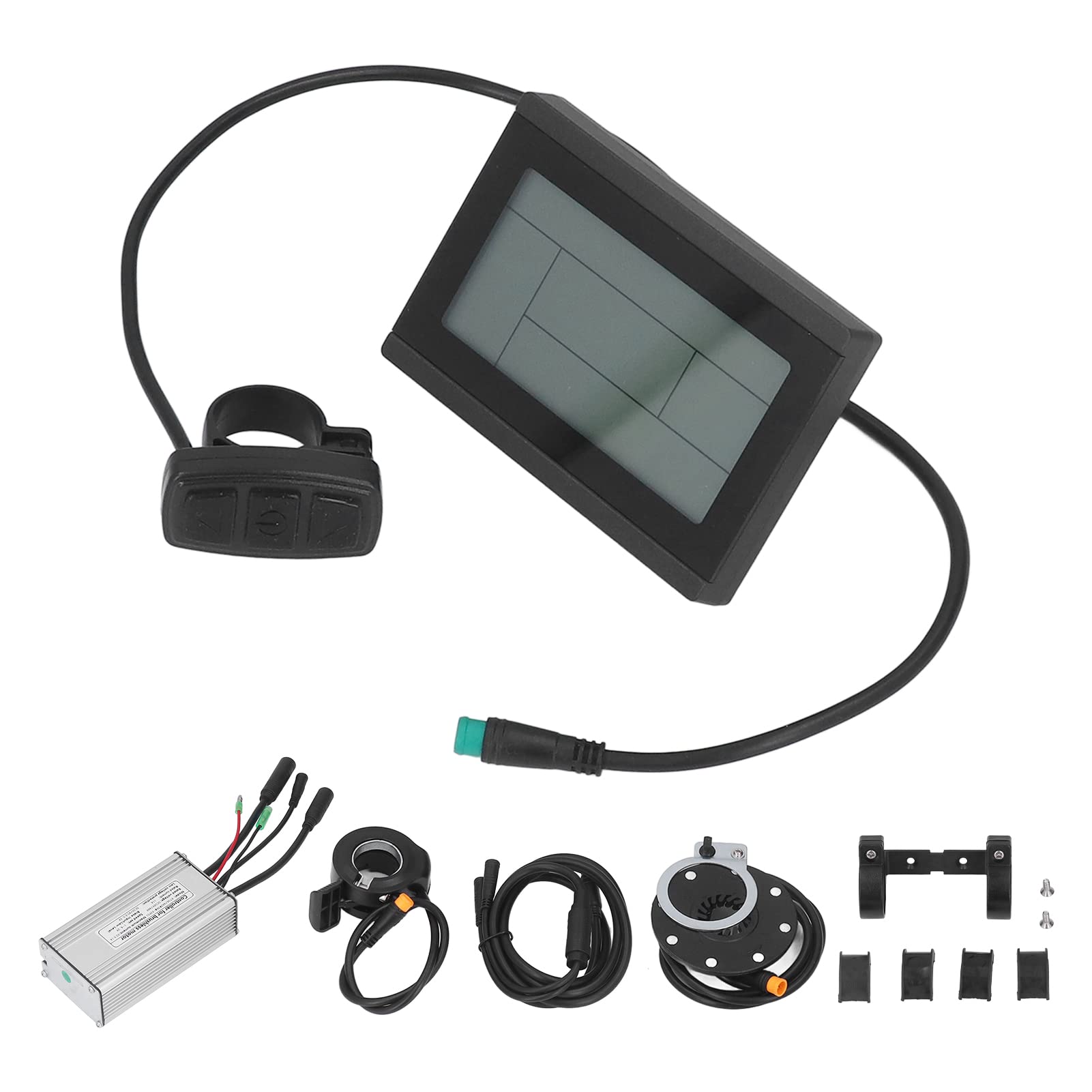

Package Content: lithium battery modification controller kit includes 22A controller + LCD3 display + 130X thumb throttle + 8C power assist sensor + 1 to 2 connecting line, 1 controller wiring manual.

LCD3 Display: The LCD3 display is made of high quality ABS material, light, strong and durable, fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit.

Application Mode: 22A controller kit is suitable for 500W motor. And suitable for DIY electric , electric vehicles, electric scooters, folding vehicles, etc. lithium battery modification greatly improves riding fun, suitable for cyclists w
