Electric Bike Conversion Kit - 48V/36V 1000W Motor Controller with Heat Dissipation Metal Shell for DIY E-Bike Upgrades | Perfect for Commuting, Off-Road & Urban Riding

Specification:Item Type: Electric Bike Motor ControllerMaterial: Aluminum Alloy, ABS PlasticController Box Size: Approx. 125 x 65 x 40mm / 4.9 x 2.5 x 1.6in (Allowable error for manual measurement)Weight: Approx. 677g / 23.8ozRated Rated Voltage: DC 36V / 48VController Rated Current: 11AController Maximum Current: 22±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VSuitable for Brushless Motor Power: 500WJoint Type: Fully Waterproof JointDescription of 1 To 2 Lines: One end is connected to the controller, and the other ends are connected to the panel and thumb throttle.Controller Line Definition:1. Single Red And Black Cable: Power Cable2. Black Single Large Wire (9pin): Motor Wire3. Black Single Wire (9pin): 1 To 2 Wires4. Black Single Wire (3pin): Power Assist Sensor Boost Sensor WireLED900S Panel Function Description: Switch Button, Up / Down Button, Left Separate Led Indicator: 6km /h Thrust Boost, Speed Indicator Panel: 19 Led Indicator, Battery Capacity: 4 Led Indicator, Power Ratio Gear: 5 Led Indicator, Right Separate Led Indicator: Start The HeadlampHow to Use:Controller description: The function can be realized by connecting the line color definition interface of the controller to the socket of the accessories. For specific operation, please refer to the wiring diagram and instruction manual.Package List:1 x Controller1 x Panel1 x Panel Manual1 x Thumb Throttle1 Assist Sensor1 x Controller Wiring Manual1 x 1 To 2 Connecting WireNote:Note that the modification kit must be fully waterproof.

LED900S Panel: the panel is made of high quality ABS material, which is light and durable, fine workmanship, good toughness and good waterproof performance. It provides better protection for the internal circuit and makes it more durable.

Controller Outer Housing: The controller housing is made of high quality metal with grooves which is designed to the internal circuitry from thermal overload due to good heat dissipation effect.

LED900S Panel Function: With multiple functions, you can easily view the data on the panel; When riding a , the product will display many useful data on your , such as switch button, battery power indicator, speed indicator dial indicator, g

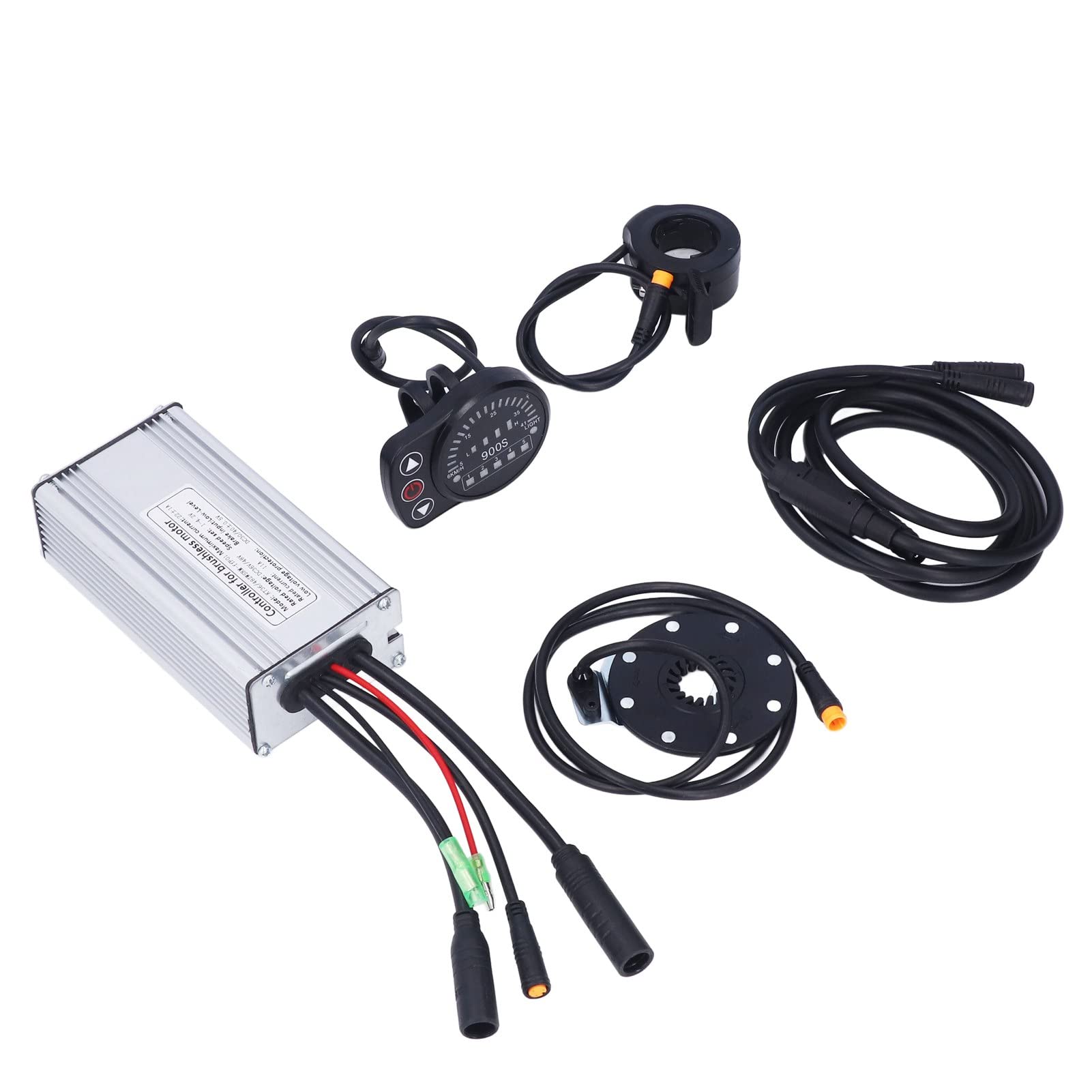

Full Kit: There is 22A controller, LED900S panel, 130X thumb throttle, 8C power assist sensor and 1T2 connecting line included in the package, full kit will be enough to meet your needs to upgrade your bike.

Widely Application: Applicable to 500W gear brushless motor. The main use are DIY Electric , electric vehicle, electric scooter, folding car, etc. Easy to maintain, lithium battery modification of greatly improves the fun of riding, which i
